by Polaris
Save $60.00
$955.00
$895.00

A 10.1" large screen GPS with the latest features!

Includes Australia Wide Topo maps!

Overview

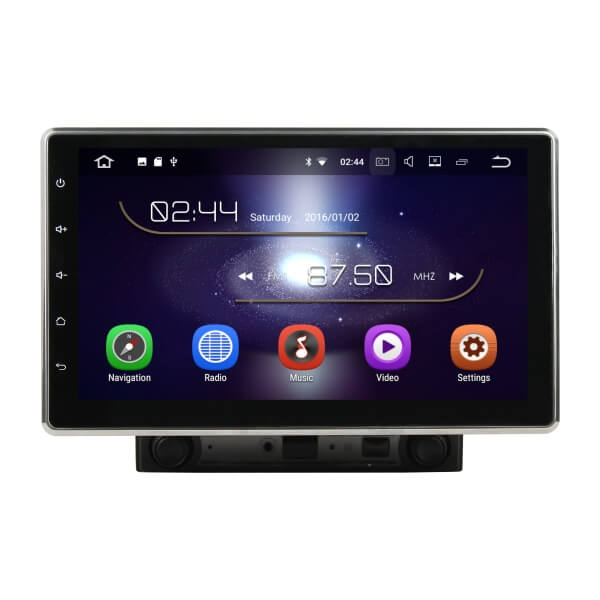

  • Double Din head unit with large 10.1″ screen on an adjustable mount
    Screen can tilt up, down, left and right. Also moves up and down on a track once installed
  • Wireless Carplay / Android Auto built in
  • Bluetooth
  • Reverse Camera included
  • AM/FM radio
  • CD/DVD player
  • 3 x USB inputs
  • Built in WiFi

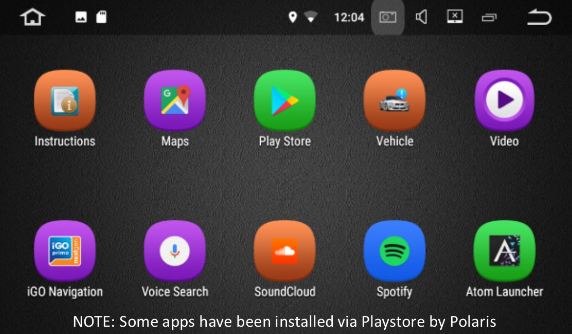

  • Download additional apps via Google Play Store
  • Second camera input

General Information

  • Android operating system
  • CPU: 64 Bit, Cortex-A53, Octa Core
  • 10.1" capacitive screen
  • Screen resolution: 1024 x 600
  • Steering wheel control programming (canbus vehicles require extra modules)
  • Extra wiring harnesses available for different vehicles

Bonus topo mapping:

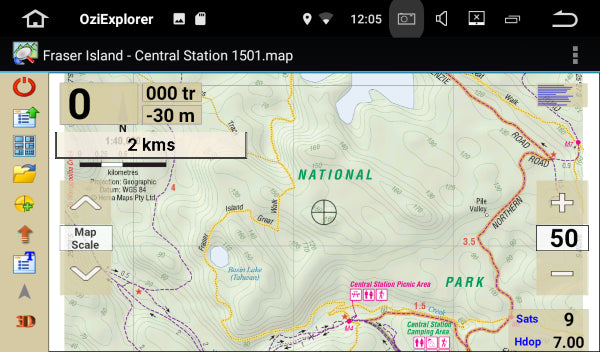

  • OziExplorer app
  • 7 Australia wide topo maps, 1:150K, 1:300K, 1:600K, 1:1.2M, 1:2.4M, 1:4.8M 1:9.6M
  • 26 Regional maps, including Adelaide, Cape York, Vic High Country, NE NSW, SE Qld, Red Centre, Top End, West Vic,
  • 64GB mSD card or USB flash drive

Optional off-road mapping:

  • Add Hema Maps
  • Or download your own from Google Play Store
  • eg  ExplorOZ Traveller & EOTopo maps from



"We come to you" installation now available in the Sydney area - extra cost.

Options:

Technical Stuff:
Monitor: Large 10.1″  Capacitive Multi Touch Screen.
Resolution: 1024×600.
Operating system: Android 10
Power supply: DC12V.
Video form: PAL/NTSC.
SWC: Supports steering wheel controls for most cars that are not controlled by CAN bus*
OSD Language: English.
Wiring: Universal ISO style harness with steering wheel control wires for tapping into vehicle OEM plug.
Warranty: 2 years.
Multi Camera support: 2 camera input. Can upgrade to control boxes for 3+ cameras.
NOTES: *We may be able to obtain a module for can bus vehicles
Technical
CPU: Rockchip PX5, Cortex-A53, Octa Core.
RAM: Samsung DDR3 2GB.
Flash: 16GB.
Radio: NXP 6686.
GPS module: SIRF III
TFT Drive IC: Rockchip PX5.
Motor Drive: Mabuchi.
Amplifier IC: TDA 7851.
Bluetooth: IVT
Video Decoder: 1080P HW.
DVR: USB Camera.
Screen: Hanstar screen.
GPS frequency: 1.6GHz.
GPS Navigation:
Google Maps: APP comes pre-installed on device. Will need to use data from personal hotspot on the road.

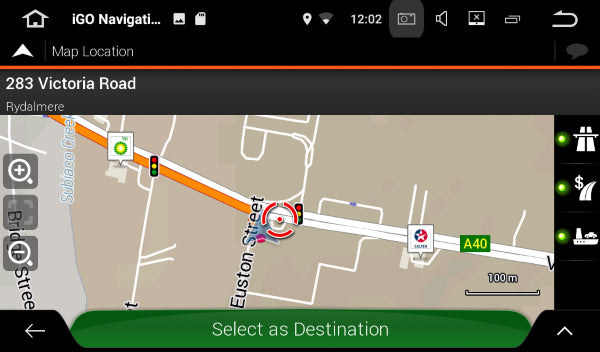

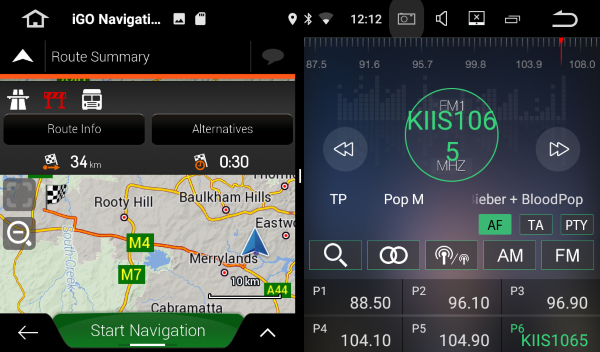

Street Navigation:* Australia Wide TomTom Navigation with iGo Nextgen Software platform
loaded onto an SD card.
Off Road Navigation:* HEMA maps with OziExplorer platform loaded onto an SD card.
GPS Dual Zone: Yes, can listen to music whilst in navigation.
GPS Language: Multi-languages.
NOTES: *OPTIONAL EXTRA

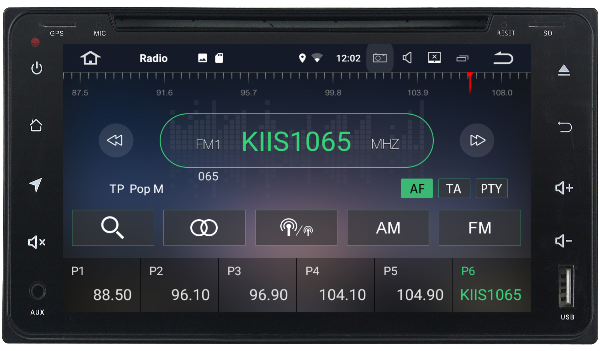

Radio Function
AM Frequency Range: 522KHz – 1620KHz.
FM Frequency Range: 76.0 MHz – 108.0 MHz.
FM Pre-set channels: Set up to 30 FM pre-sets.
AM Pre-set channels: Set up to 30 AM pre-set channels.
USB
USB Flash Drive Supports up to 64GB.
USB Inputs: 3 x USB inputs.
Supports iPod/iPhone/iPad: For Charging only.
File Formats Supported: MP3/WMA/AAC/RM/FLAC/MPEG-1,2,4/H264/H263/VC1/RV/RMVB/DivX/JPEG/BMP/GIF/PNG.

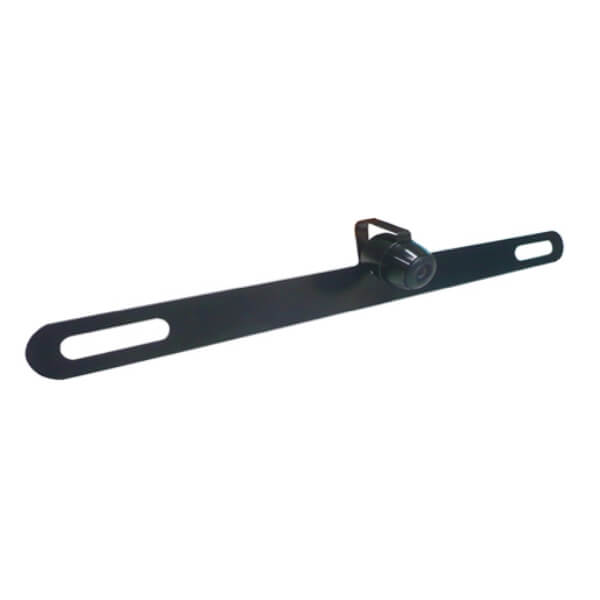

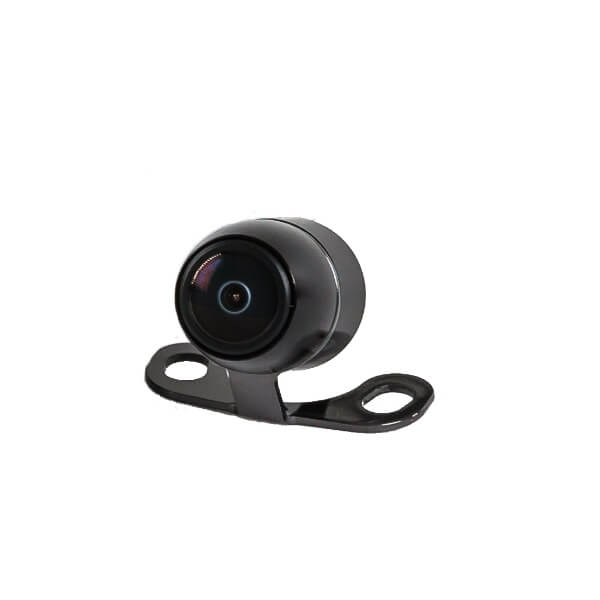

Reverse Camera Function
Reverse Camera input: Yellow RCA jack.
Reversing Camera: Reverse Camera comes standard with the Universal Maxx
Reverse Trigger: Reverse Camera will engage when vehicle is put into reverse gear.
Front Camera*
Front cam input: Yellow RCA Jack .
Functionality: Once reverse gear is disengaged, the forward vision camera can be set to appear on the screen for a nominated time interval.  The forward vision camera can also be viewed at any time by selecting
CAM icon in the main menu.
NOTES: *Optional Extra
Caravan / Trailer Camera*
Input Can work via the front Camera input (provided you are not using a front camera).
Functionality Can be accessed any time via the CAM icon via the main menu. Can also access additional camera whilst in reverse by selecting        on the screen to switch camera views.
NOTES: *Optional Extra

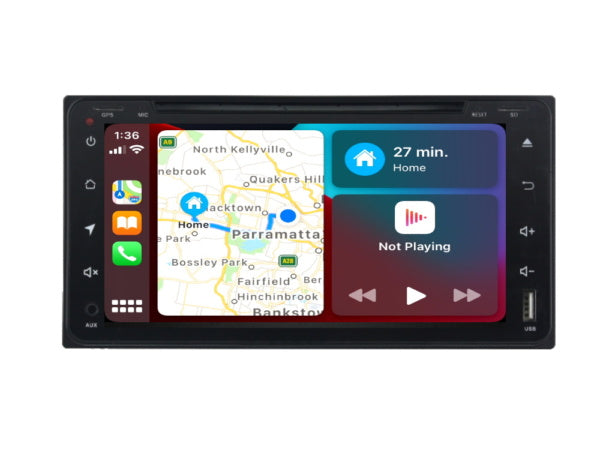

Car Play / Android Auto
Standard feature Wireless Car play / Wired Android Auto now a standard feature of the Universal Maxx. Works through Zlink
Bluetooth Function
Hands free: Yes, compatible with BT.2.0 for most brand phones.
Import Phonebook: Yes, with alphabetic search function.
Stream audio via Yes.
Bluetooth:
Supports external Yes, included in the unit.
microphone:
CD/DVD
Video Output Range: 1.0V-1.2V(75Ω）.
Compatible Disc: DVD/DIVX/MP4/MP3/MP2/VCD.
Wi-Fi
Power Supply: Vcc_3.3V.
Supported protocol/standard: IEEE802.11B/g/n compatible WLAN.
Interface type: USB 2.0.
Frequency: 2.4-2.484GHz.
RF Power: 15dBM.
Modulation: OFDM/DBPSK/DQPSK/CCK.
Audio Input & Output
Max power: Built in 4x50w with internal amplifier.
EQ: 10 band equaliser.
Sound effects: Pop, classical, rock, flat, jazz, custom, voice.
AUX audio input: Yes – L & R.
AUX audio output: RL out, FL out, RR out, FR out.
Subwoofer output: Yes.
Test Voltage 13.8V.

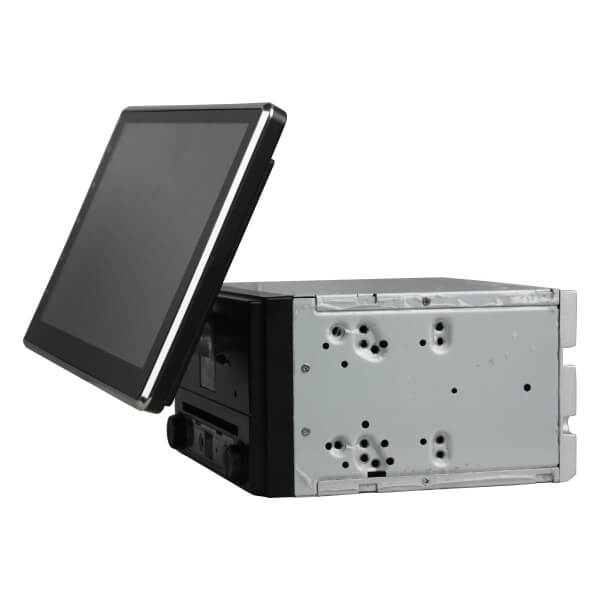

Mounting Style
Din Size: Double Din.
Screen: Screen can tilt up > Down > left and right. Also moves up and down on a track once installed so it suits different style dashes.
