Polaris 9" Isuzu Dmax & MUX

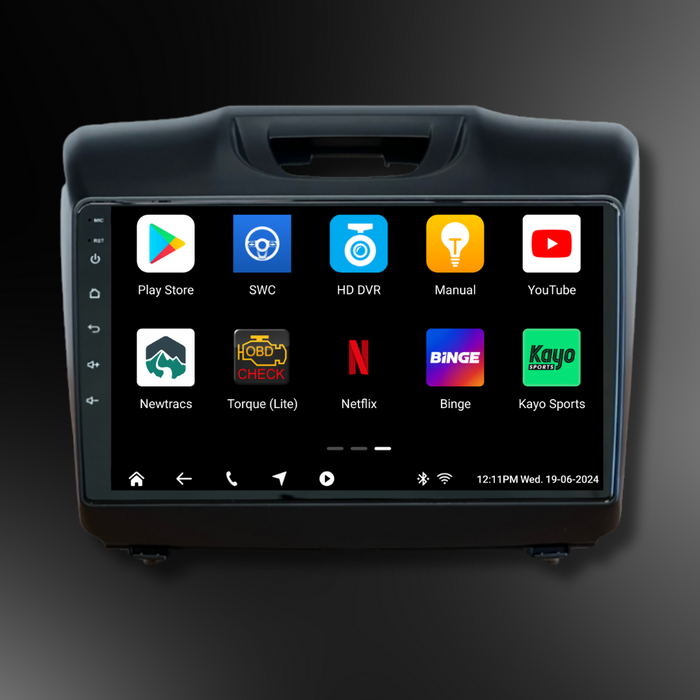

9″ head unit designed for Isuzu Dmax & MUX 2012-2020
Includes Australia Wide Topo maps!
Introducing the all-new REVAMPED Isumaxx, the ultimate Head Unit upgrade that redefines in-car entertainment and connectivity. With its sleek, modern design and advanced features, the Isumaxx transforms your driving experience into a seamless blend of technology and convenience.
Enjoy crystal-clear audio, intuitive touchscreen controls, and seamless smartphone integration in one powerful device.
Quick Overview
- 9″ sleek head unit designed to fit perfectly in 2012-2020 Isuzu Dmax/MU-X* & Holden Colorado 2012 – 2016
- 2 Wiring harnesses included* to suit Dmax/MUX & Holden Colorado (see compatible vehicles below)

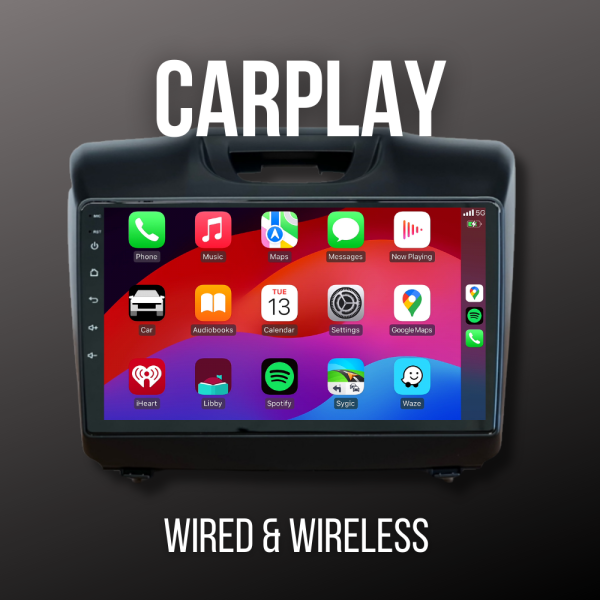

- Wireless Carplay

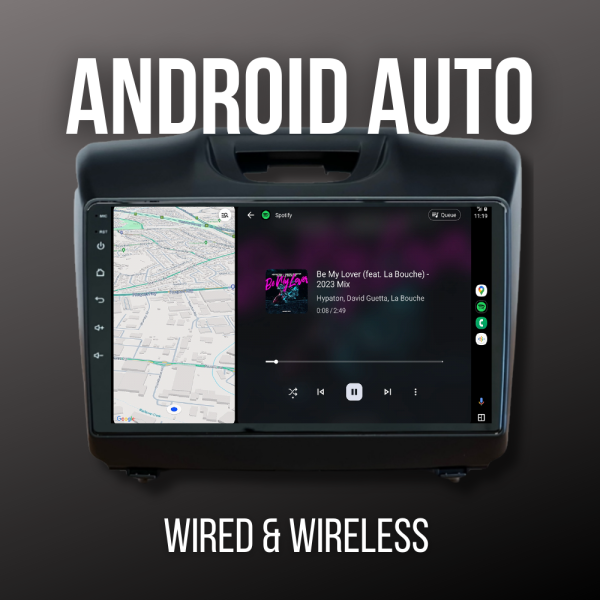

- Wireless Android Auto
- AM/FM Radio
- 9-inch
- Android 11
- Bluetooth
- Free Reverse Camera or retains factory camera if applicable.
- Built-In Wifi
- 4G Sim Compatible
- Second Camera Input
- High Definition Screen: 1280×800 with MiraVision

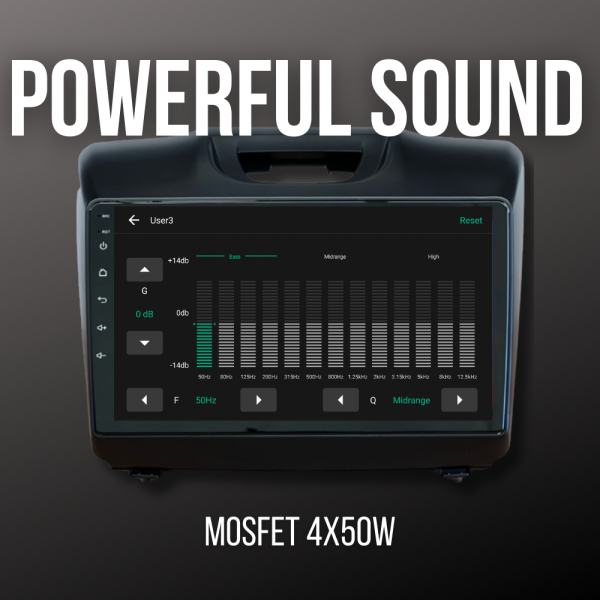

- High Quality Audio: MOSFET Amplifier
- Download additional apps
- Modern, User Friendly Interface
*Vehicles with factory Clarion Navigation Head Units will require an adaptor (AP9163)
Compatible vehicles:
- 2012 – early 2020 Isuzu D-MAX
- 2012 – early 2020 Isuzu MU-X
- 2012 – 2014 Holden Colorado (NO Mylink)
- 2014 – 2016 Holden Colorado (with Mylink)
No more needing to choose which harness you require as it will come with 2 wiring harnesses to suit the above vehicles
*Vehicles with factory Clarion Navigation Head Units will require an adaptor (AP9163) +$30 see here

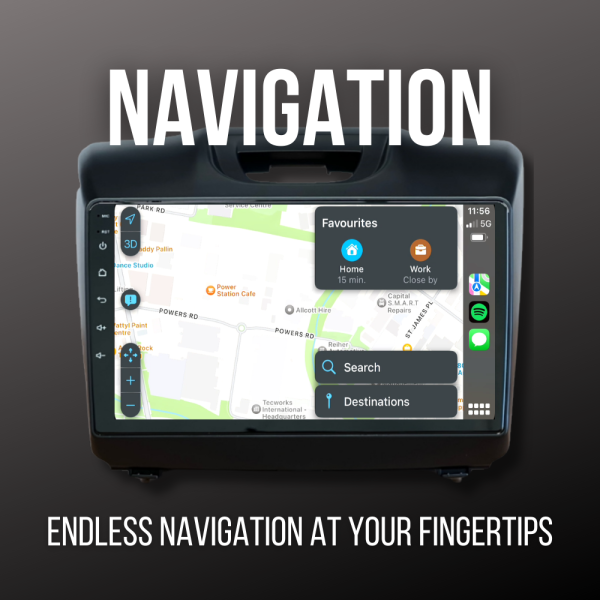

Bonus topo mapping:
- OziExplorer app
- 7 Australia wide topo maps, 1:150K, 1:300K, 1:600K, 1:1.2M, 1:2.4M, 1:4.8M 1:9.6M
- 26 Regional maps, including Adelaide, Cape York, Vic High Country, NE NSW, SE Qld, Red Centre, Top End, West Vic,
- 64GB mSD card or USB flash drive
Optional off-road mapping:
- Add Hema Maps
- Or download your own from Google Play Store
- eg ExplorOZ Traveller & EOTopo maps from
Options:
- Dashcam to keep an eye on things +$75
- OBDII reader for vehicle diagnostic information +$50
Additional information
| Weight | 2.4 kg |
|---|---|
| CPU |
Cortex-A53 4CPU+4GPU, 2.0GHz |
| RAM |
6GB |
| ROM |
128GB |
| Android OS |
11 |
| PCB Layer |
8 layers with 2 ranks |
| Working voltage |
10.8V ~16V |
| GPU |
ARM@400MHz |
| Memory Type |
LPDDR4 speed up to 3200 MT/S |
| WiFi |
2.4G & 5G wifi up to 600 Mbps DL 802.1lac Wi-Fi X12 modem |
| Operating Temperature |
-20° to 70° |
| Resolution |
QLED 1280×800 |
| Display Mode |
16:09 |
| Touchscreen |
Capacitive Touch Screen |
| LED backlight |
Yes |
| Screen Density |
293 |
| DPI |
300 |
| Bluetooth |
BT 5.0 dual connection, support A2DP (bluetooth stereo music) |
| Dual Connection |
Yes (Phone + Other Bluetooth device) |
| Internal Microphone |
Yes |
| External Microphone |
Yes |
| Radio IC |
SI47901 |
| AM/FM Tuner |
High Performance Radio Receiver, Yes |
| DAB+ Tuner |
No |
| Local Seek Tuning |
Yes |
| RDS |
Yes |
| Smartphone Integration |
Android Auto: wired & wireless, Apple Carplay: wired & wireless |
| Voice Control |
Yes, with Android Auto: OK Google, Yes, with Carplay: Siri |
| CD/CD-R/CD-RW Playback |
No |
| DVD playback |
No |
| USB Playback |
Yes |
| SD Playback |
Yes |
| File formats |
MP3,WMA,WAV,OGG,FLAC,APE, RMVB,MKV,MOV,WMV,AVI,MPG, TS with 1080P H.264 format |
| Amplifier IC |
STPA008 |
| RCA Pre-outs |
3 Pair, 4V (Front/Rear/Subwoofer) |
| Built-in Amplifier |
MOSFET 4x50W |
| Easy EQ Preset Equaliser |
13-Band EQ, Yes |
| D/A Converter |
24-Bit |
| Crossover Network |
LPF/HPF |
| 3-Way Audio Network Mode |
Yes |
| Subwoofer control |
Yes |
| Advanced Sound Retriever |
Yes |
| Listening Position Selector |
Yes |
| Sim Card Capability |
Yes, 4G |
| USB |
1 cabled USB for wired Carplay/Android Auto, 2 cabled USBs for media |
| HDMI |
No |
| SD/SDHC Memory Slot |
Yes, located at the rear of head unit |
| Camera Inputs |
2 camera inputs |
| Reverse camera included |
Yes |
| Retains factory camera |
Yes |
| Warranty Period |
2 years from date of purchase |
| Chassis Size |
No Chassis, Screen attached to Fascia panel and clips into factory dash |
