Polaris 10.1" Toyota Prado 2018-2023 in-Dash
by Polaris
Save $50.00
$1,045.00
$995.00
10.1″ Android in-dash unit to Toyota Prado 150 series 2018-2024
Includes Australia Wide Topo maps!
Description
Presenting the completely redesigned PradoMaxx18, the ultimate upgrade for your car’s head unit, revolutionising in-car entertainment and connectivity. With its sleek, modern design and cutting-edge features, the PradoMaxx18 enhances your driving experience by seamlessly merging technology and convenience.
Experience crystal-clear audio quality, intuitive touchscreen controls, and seamless smartphone integration—all in one powerful device.

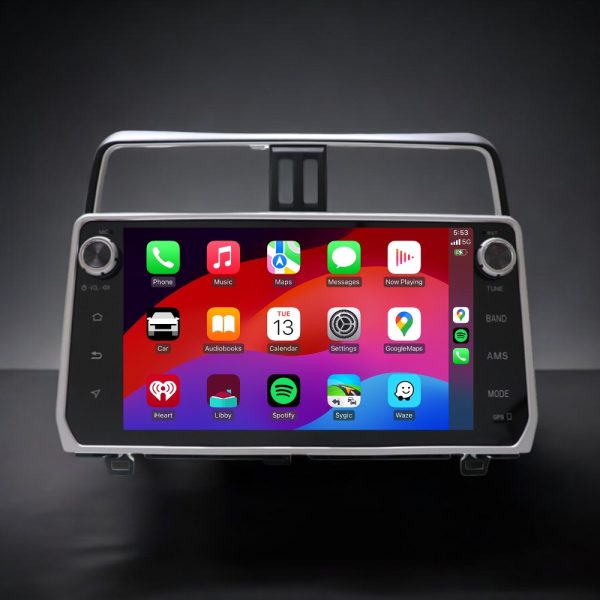

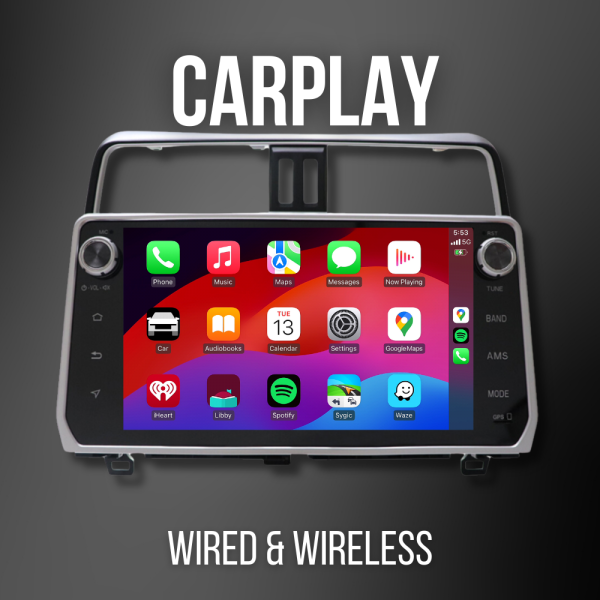

- Wireless Carplay

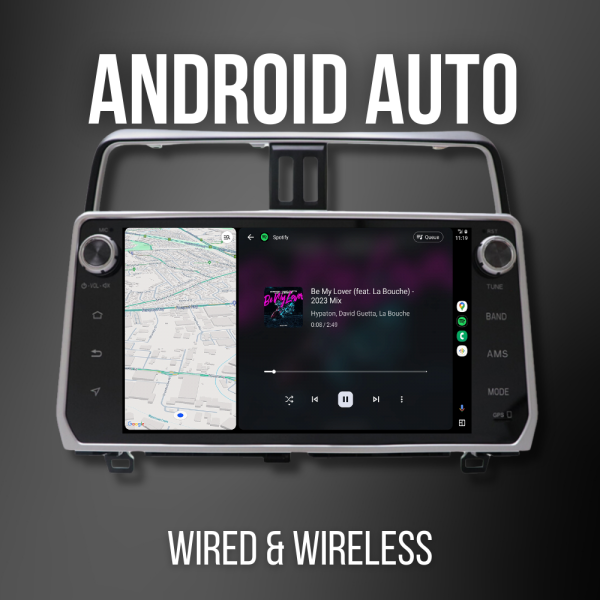

- Wireless Android Auto
- AM/FM Radio

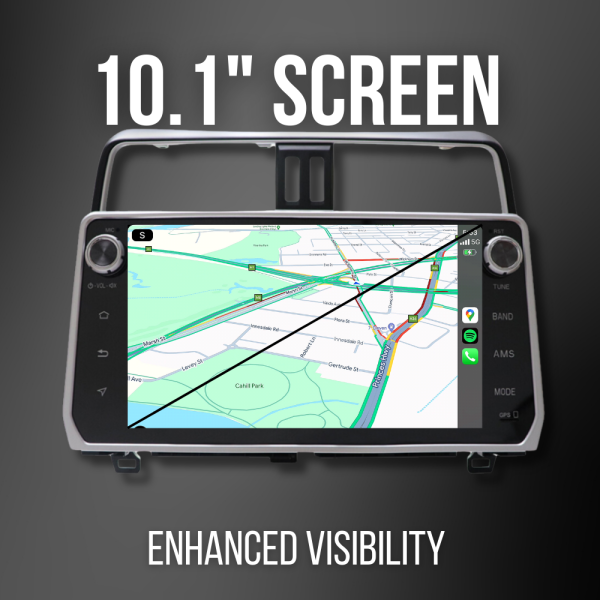

- 10.1-inch
- Wiring Harness included
- Android 11
- Bluetooth

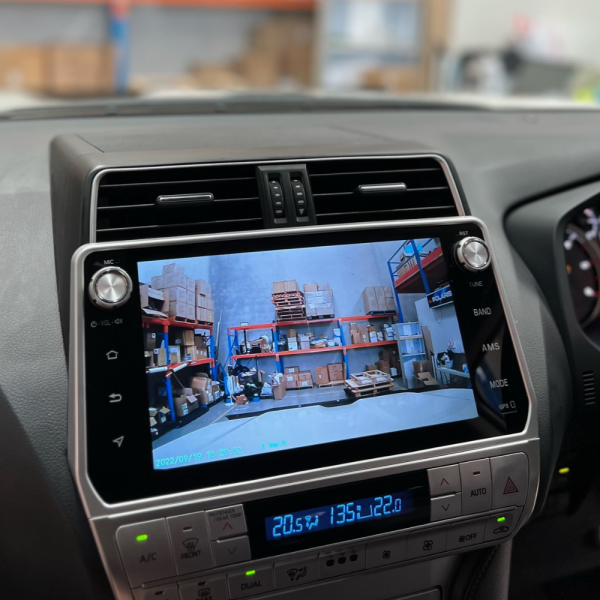

- Retains Factory Reverse & 360 camera (if applicable)
- Built-In Wifi

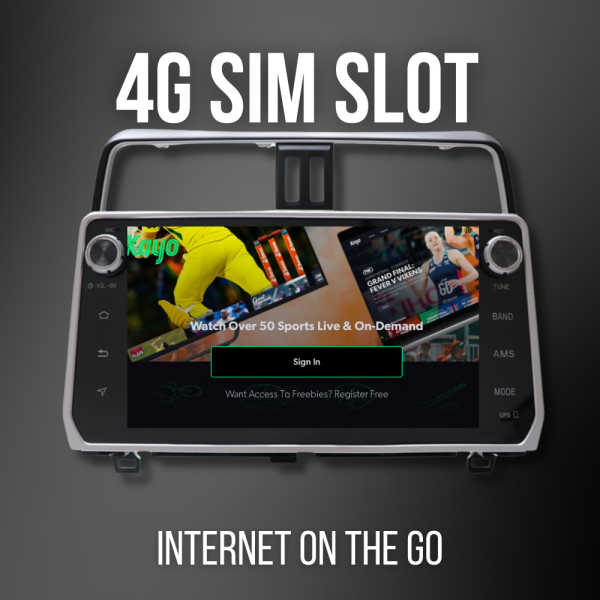

- 4G Sim Compatible

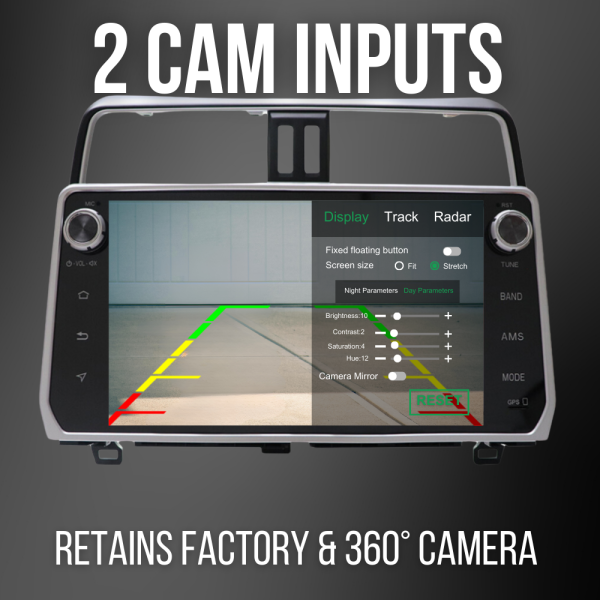

- Second Camera Input
- High Definition Screen: 1024×600 with MiraVision

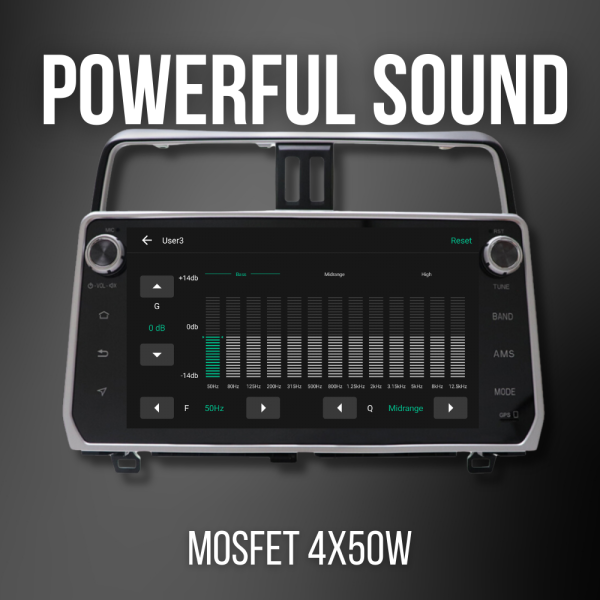

- High Quality Audio: MOSFET Amplifier
- Download additional apps

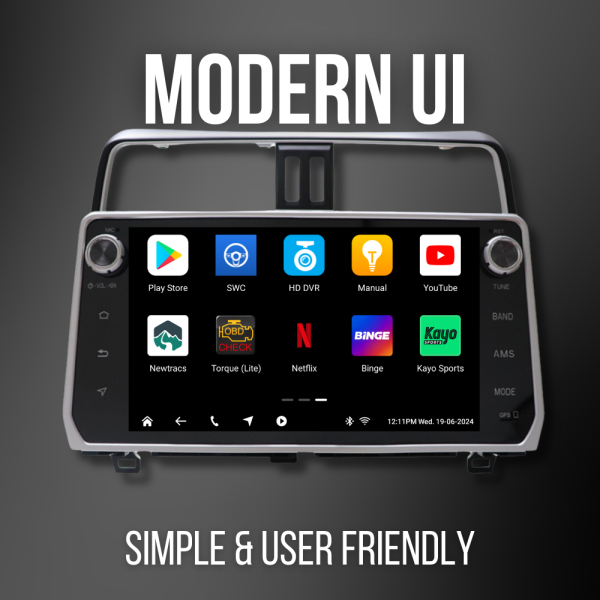

- Modern, User Friendly Interface
Compatible vehicles:
- 2018-2020 Toyota Prado 150 series
- 2020-2023 Toyota Prado 150 series
Fits all models: GX, GXL, Kakadu & VX

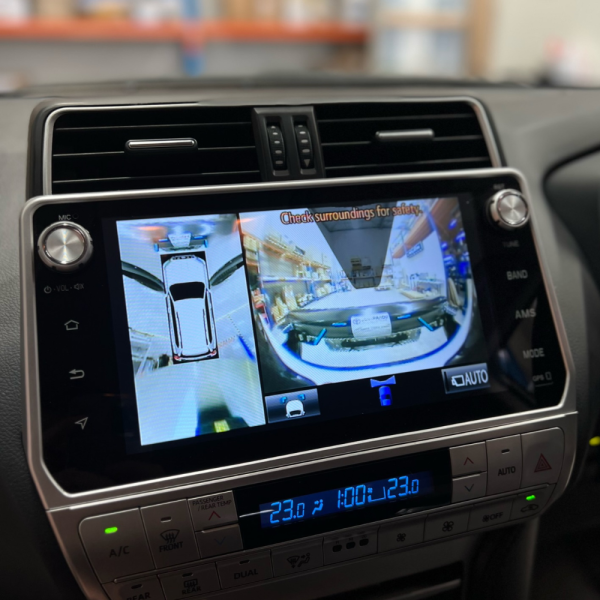

360° camera notes
- 2018-2020 Toyota Prado 150 series will retain 360-degree camera normal view
- 2020-2023 Toyota Prado 150 series will retain 360-degree camera 3D view
No Need to choose which model year you have as the head unit will come with both harnesses to suit 2018-2023 models

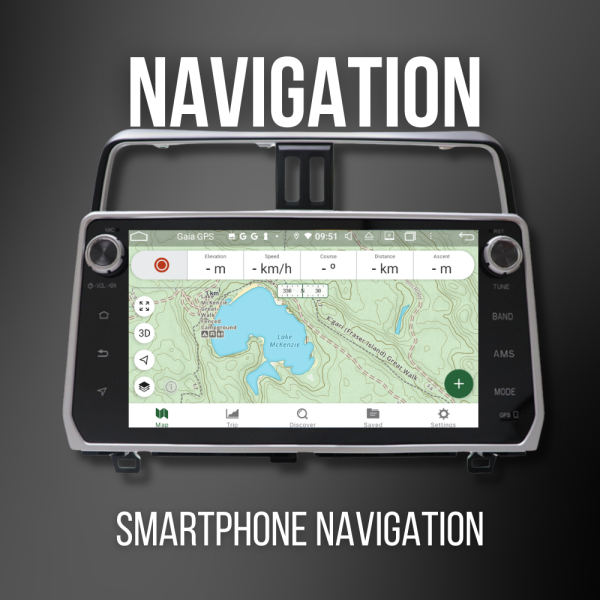

Bonus topo mapping:
- OziExplorer app
- 7 Australia wide topo maps, 1:150K, 1:300K, 1:600K, 1:1.2M, 1:2.4M, 1:4.8M 1:9.6M
- 26 Regional maps, including Adelaide, Cape York, Vic High Country, NE NSW, SE Qld, Red Centre, Top End, West Vic,
- 64GB mSD card or USB flash drive
Optional off-road mapping:
- Add Hema Maps
- Or download your own from Google Play Store
- eg ExplorOZ Traveller & EOTopo maps from
"We come to you" installation now available in the Sydney area - extra cost.
Options:
- Dashcam to keep an eye on things +$75
- OBDII reader for vehicle diagnostic information +$50
Specifications
| System | Specifications |
| CPU | Cortex-A53 4CPU+4GPU, 2.0GHz |
| RAM+ROM | 6G+128G |
| O/S | Android 11 |
| PCB layer | 8 layers with 2 ranks |
| VIDEO |
RMVB,MKV,MOV,WMV,AVI,MPG, TS with 1080P H.264 format |
| AUDIO | MP3,WMA,WAV,OGG,FLAC,APE |
| Steering Wheel control | Supports (if applicable) |
| Power off | Shut off the OS, <10mA |
| Working voltage | DC12V |
| Operating voltage range | 10.8V ~16V |
| Max current | 10A |
| Form Factor | In-Dash |
| Enclosure Type | 1 DIN |
| OSD Language | English, Russian, Arabic, German, Spanish, French, Thai, Italian, Chinese + more than 63 languages |
| Illumination control | Yes |
| Anti shock | Mechanical anti-shock & Electronic anti-shock |
| Features | Bluetooth 5.0, FM AM Radio with RDS, GPS External Antenna, 2.4GHz and 5GHz WIFI, Rear Camera Input(AHD and CVBS compatible), Aux In, video out(CVBS out), USB multimedia playback, DSP, Front camera support, MiraVision (best display quality), 4.2 RCA with 2 way subwoofer control |
| Display | |
| Touch Screen | Multi-touch |
| Display Mode | 16:09 |
| Screen Size | 10.1 inch |
| Touch Screen | Capacitive touch screen |
| Screen Resolution | 1024×600 |
| Display off | Yes |
| Carplay and Android Auto | |
| Wireless | Supports |
| Phone support | Carplay for iPhone, Android Auto for Android phone |
| Auto connect | Automatic connection after pairing the first time. |
| WIFI | |
| Dual band | 2.4G and 5GHz |
| Security | WFA WPA/WPA2 Personal. AES-CCMP, WPI-SMS4, GCMP, WPS2.0, WAPI |
| Frequency |
2412MHz~2472MHz(802.11b/802.11g/802.11n(HT20)) 2422MHz~2462MHz(802.11n(HT40)) |
| GPS | |
| Map support | Supports many different mapping applications |
| Frequency | GPS L1: 1559MHz~1610MHz |
| Radio | |
| Radio IC | SI47901 |
| Radio Tuner | FM/AM RDS |
| Support RDS | Yes |
| Frequency | FM: 87.5~108 MHz, AM: 522~1620 KHz |
| Amplifier | |
| Built-in Amplifier | MOSFET |
| Amplifier output power/channel qty. | 50Wx4 |
| RCA Pre-outs | 3 pair, 4V (Front/Rear/Subwoofer) |
| EQ mode | Flat, Powerful,Vocal, Natural, Insane, Unlimited Preset EQ Styles |
| Customisable Graphic Equaliser | 13-Band GEQ |
| D/A Converter | 24-Bit |
| Crossover Network | LPF/HPF |
| Time Alignment | Yes |
| Loudness | Yes |
| Subwoofer Control | Yes |
| LPF and HPF adjust | Yes |
| Bluetooth | |
| Version | BT5.0 dual connection, support A2DP(Bluetooth Stereo Music) |
| Built-in Microphone | Yes |
| External Microphone | Yes |
| Received Call | Yes |
| Dialled Call | Yes |
| Missed Call | Yes |
| Phone Book download | Yes |
| Frequency | 2402~2480MHz |
| Rear Camera Input | |
| Reversing mode | The screen automatically displays rear camera video when reversing whether the power is off or on. |
| Rear Camera | Not Included as it retains the factory reverse & 360° camera |
| SD/USB | |
| Playback mode | Automatic play multimedia when the device is connected unit |
| SD map card slot | Yes – located in the rear of head unit |
| USB port | 2 |
| Interface | |
| Video Input |
3 Channel, One for front camera(CVBS/AHD) one for rear camera(CVBS/AHD),one for aux in(CVBS) |
| Video Output | 2 Channel(CVBS out) |
| Audio Input | 2 Channel for aux in |
| Audio Output | 4.2 Channel (FL/FR/RL/RR/SUB-L/SUB-R) |
| USB Port | Yes, 2 Rear USB port |
| General | |
| Colour | Black |
| Operation Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
